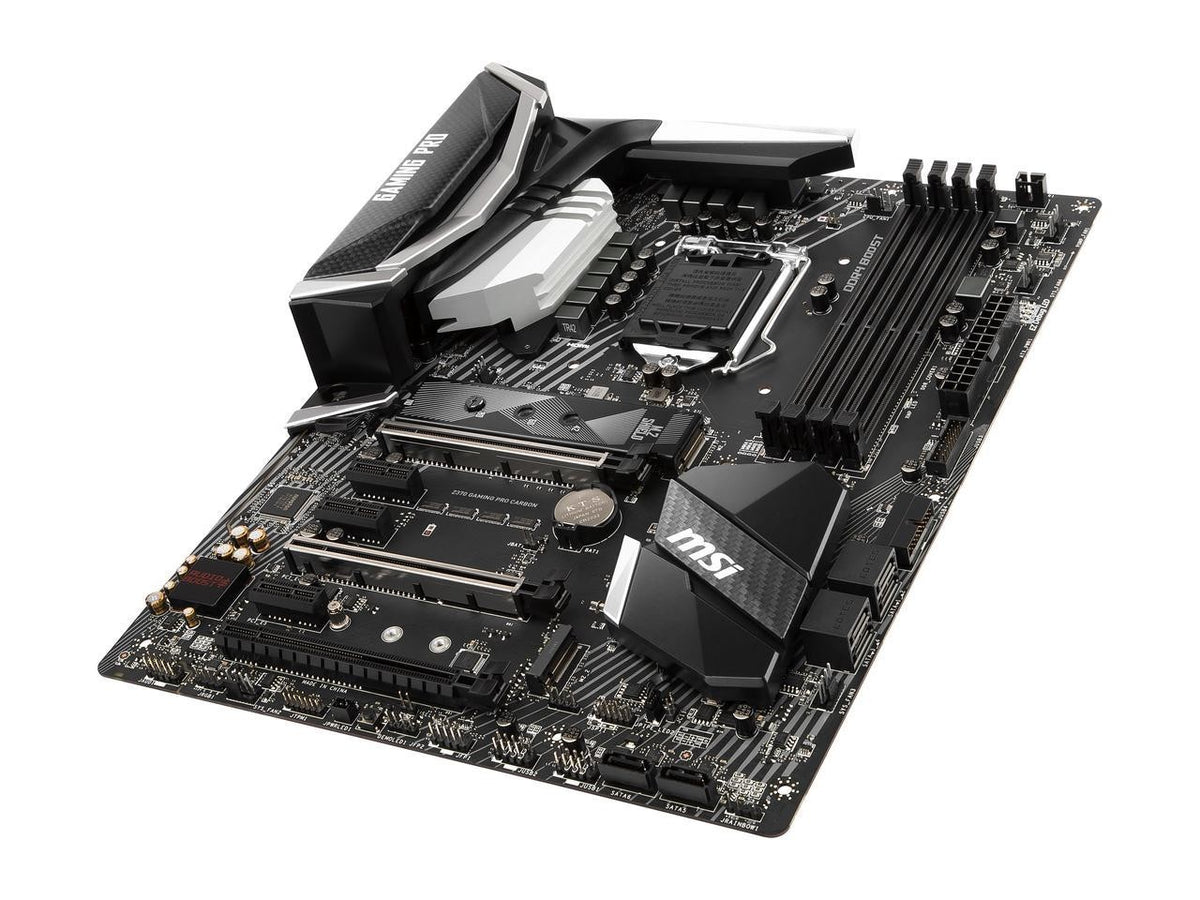

MSI Z370 Gaming Pro Carbon

The MSI Z370 Gaming Pro Carbon is an ATX motherboard for compatible 8th and 9th generation Intel desktop processors, with DDR4 memory support and two M.2 storage slots.

Condition and included items

• Condition: Good, used.
• Missing part: One M.2/NVMe cover is missing.
• Included: Motherboard only. CPU, RAM, storage, cables and other accessories are not included.
• Warranty: 14 days.

Product specifications

• Socket: LGA 1151
• Chipset: Intel Z370
• CPU support: Compatible 8th and 9th generation Intel Core, Pentium Gold and Celeron processors. BIOS compatibility should be checked for the chosen CPU.
• Memory: 4 DDR4 DIMM slots, dual-channel, up to 64GB; Intel XMP support.
• Expansion: 3 PCIe 3.0 x16 and 3 PCIe 3.0 x1 slots.
• Storage: 2 M.2 slots supporting compatible PCIe NVMe or SATA SSDs; 6 SATA 6Gb/s ports. Available SATA connections depend on the M.2 devices installed.
• Networking: Intel I219-V Gigabit Ethernet.
• Audio: Realtek ALC1220 7.1-channel audio with optical S/PDIF output.

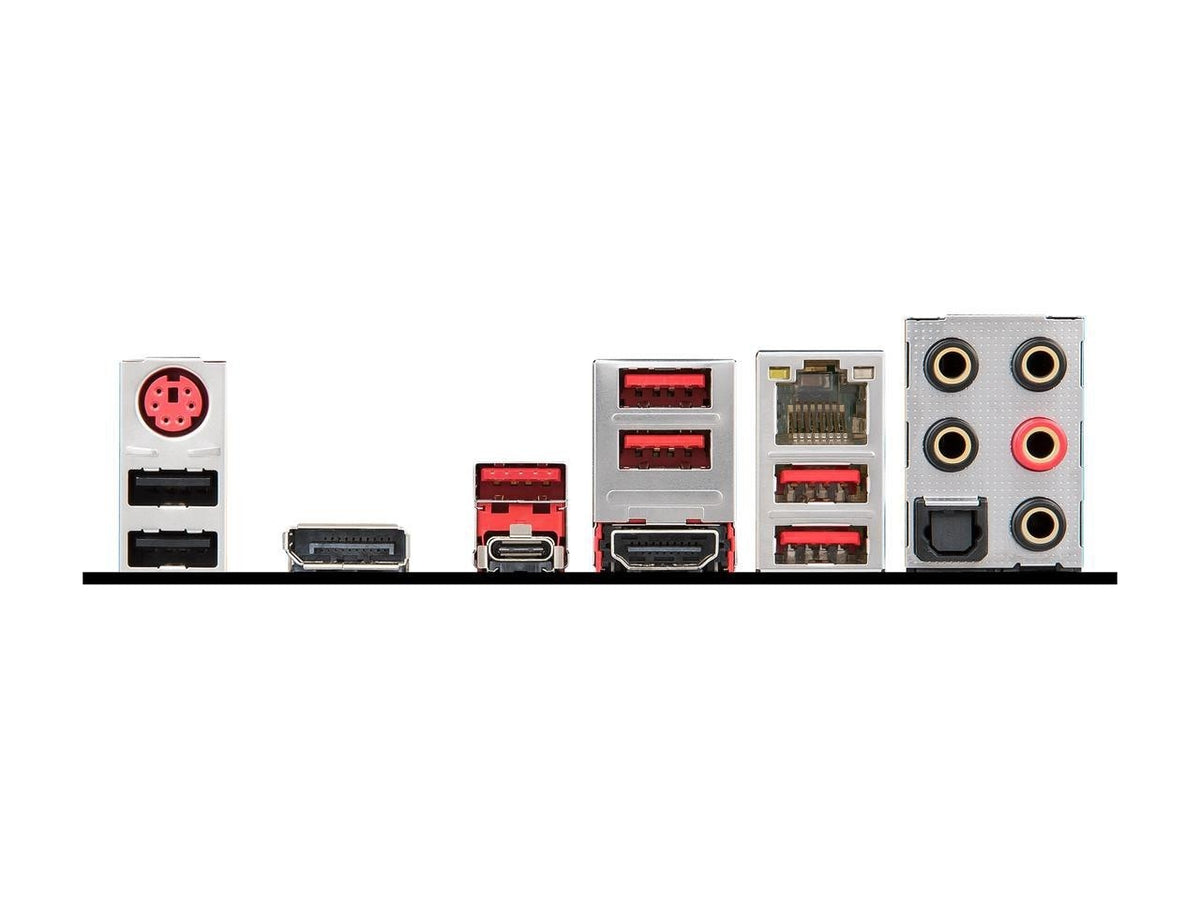

• Rear connections: HDMI, DisplayPort, USB 3.1 Gen 2 Type-C and Type-A, 4 USB 3.1 Gen 1 Type-A, 2 USB 2.0, Gigabit LAN and audio. Onboard video outputs require a CPU with integrated graphics.
• Form factor: ATX (30.4 × 24.3 cm).

Please check processor, BIOS, memory, case and storage compatibility before ordering.
