ASUS P8Z77-V LX Intel Z77 LGA1155 DDR3 ATX Motherboard

Save R 200.00
ASUSSKU: ASUS-P8Z77-V-LX-USED

Price:
Sale priceR 1,499.00 Regular priceR 1,699.00
Stock:
Only 1 unit left

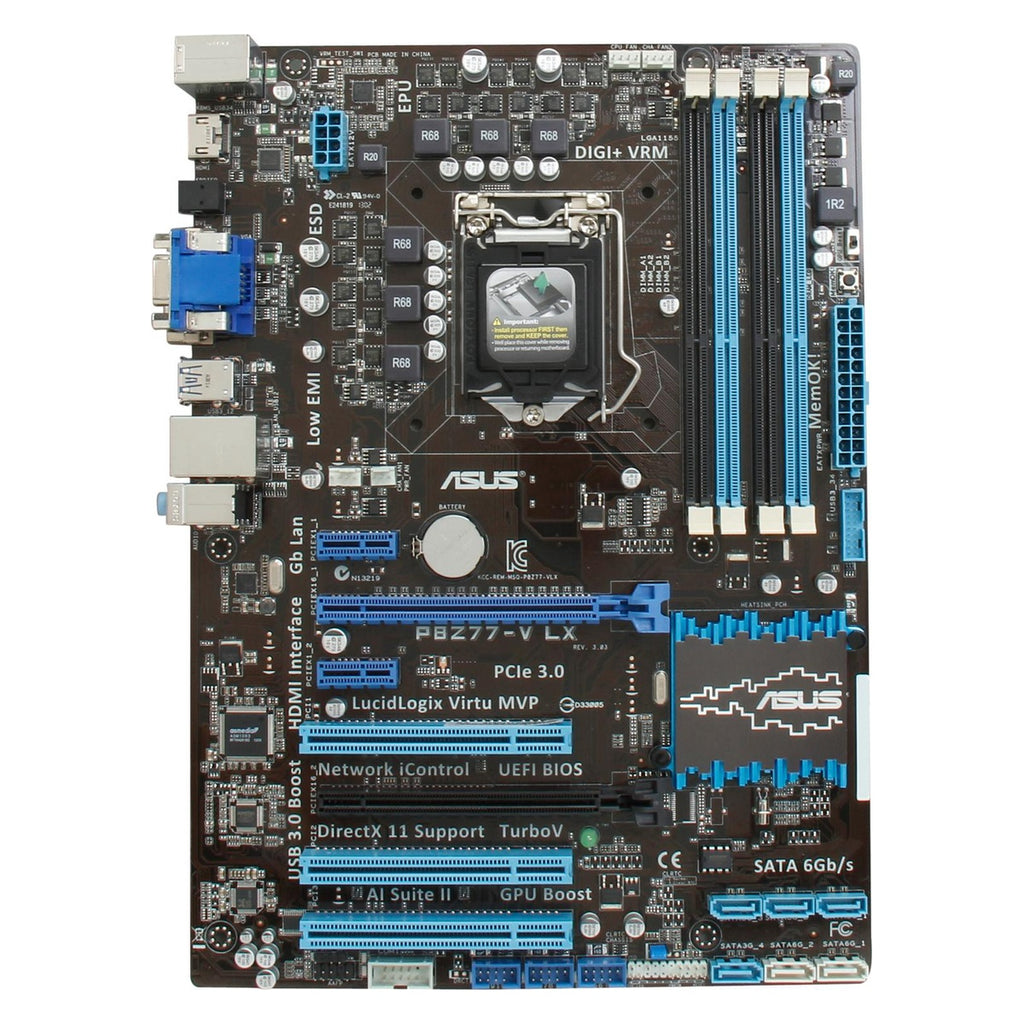

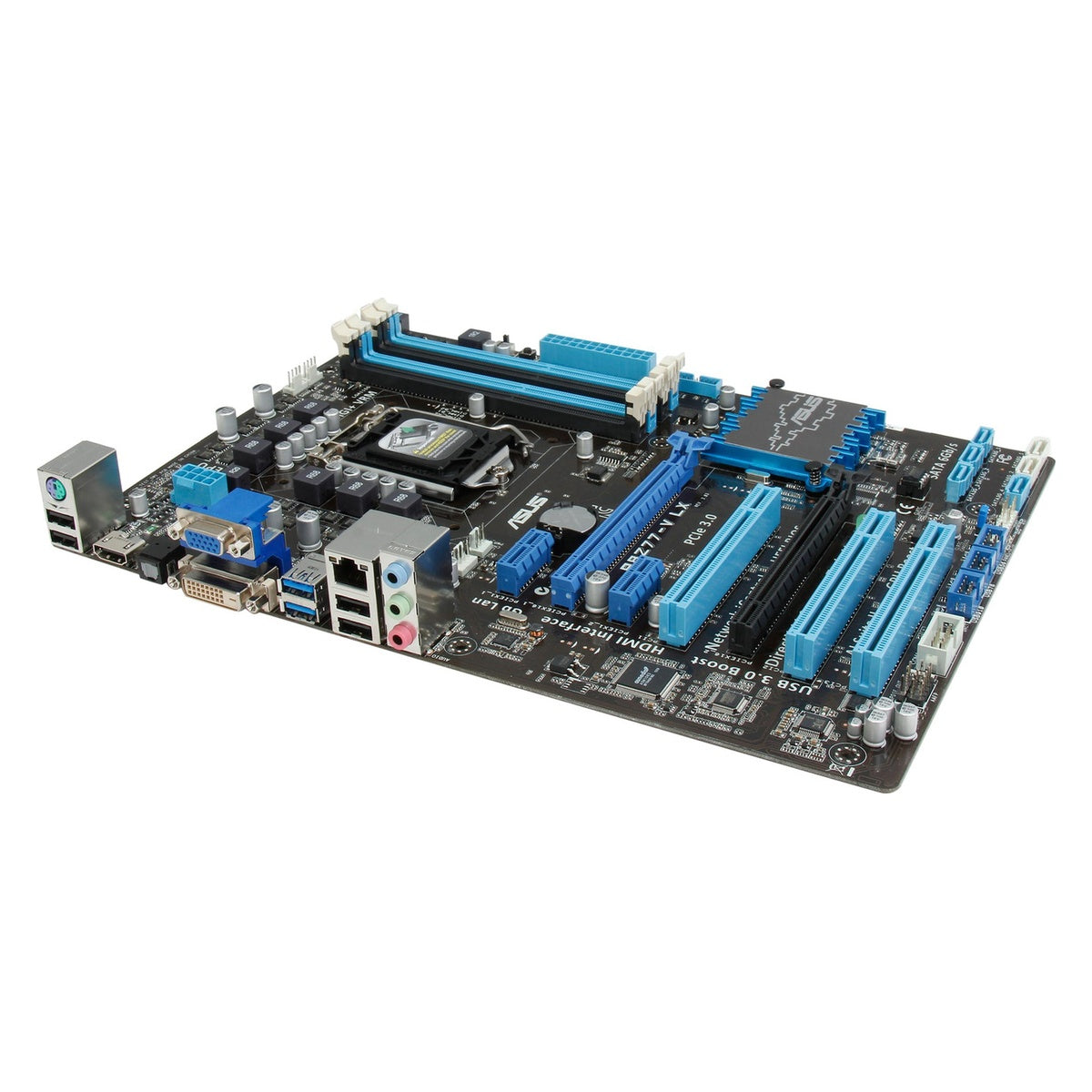

ASUS P8Z77-V LX Intel Z77 LGA1155 DDR3 ATX Motherboard

The ASUS P8Z77-V LX is an Intel Z77 ATX motherboard for compatible 2nd and 3rd Generation Intel LGA1155 processors. It offers four DDR3 memory slots, SATA storage, USB 3.0 and a UEFI BIOS, with ASUS DIGI+ VRM power control and MemOK! memory support.

Specifications

  • Brand: ASUS
  • Model: P8Z77-V LX
  • Chipset: Intel Z77 Express
  • CPU socket: LGA1155
  • CPU support: Compatible 2nd / 3rd Gen Intel Core i3, i5 and i7, plus supported Pentium and Celeron processors; BIOS version may affect compatibility
  • Form factor: ATX — 305 × 218mm
  • Memory slots: 4 × 240-pin DDR3 DIMM
  • Maximum memory: 32GB (4 × 8GB), dual-channel, non-ECC unbuffered
  • Memory speeds: DDR3-1066 / 1333 / 1600; 1866 / 2133 / 2200 / 2400MHz through overclocking; Intel XMP supported
  • Expansion slots: 1 × PCIe 3.0 / 2.0 x16, 1 × PCIe 2.0 x16-length slot operating at x4, 2 × PCIe 2.0 x1 and 3 × PCI
  • PCIe 3.0: Requires a compatible 3rd Gen Intel Core processor
  • Multi-GPU: AMD CrossFireX support
  • Storage: 2 × SATA 6Gb/s + 4 × SATA 3Gb/s; RAID 0 / 1 / 5 / 10
  • M.2: No onboard M.2 slot
  • Display outputs: HDMI, DVI-D and VGA; require a processor with integrated graphics
  • LAN: Realtek 8111E / 8111F Gigabit Ethernet
  • Wireless: No built-in Wi-Fi or Bluetooth
  • Audio: Realtek ALC887 HD audio with optical S/PDIF; 8-channel output requires the chassis front HD-audio connection

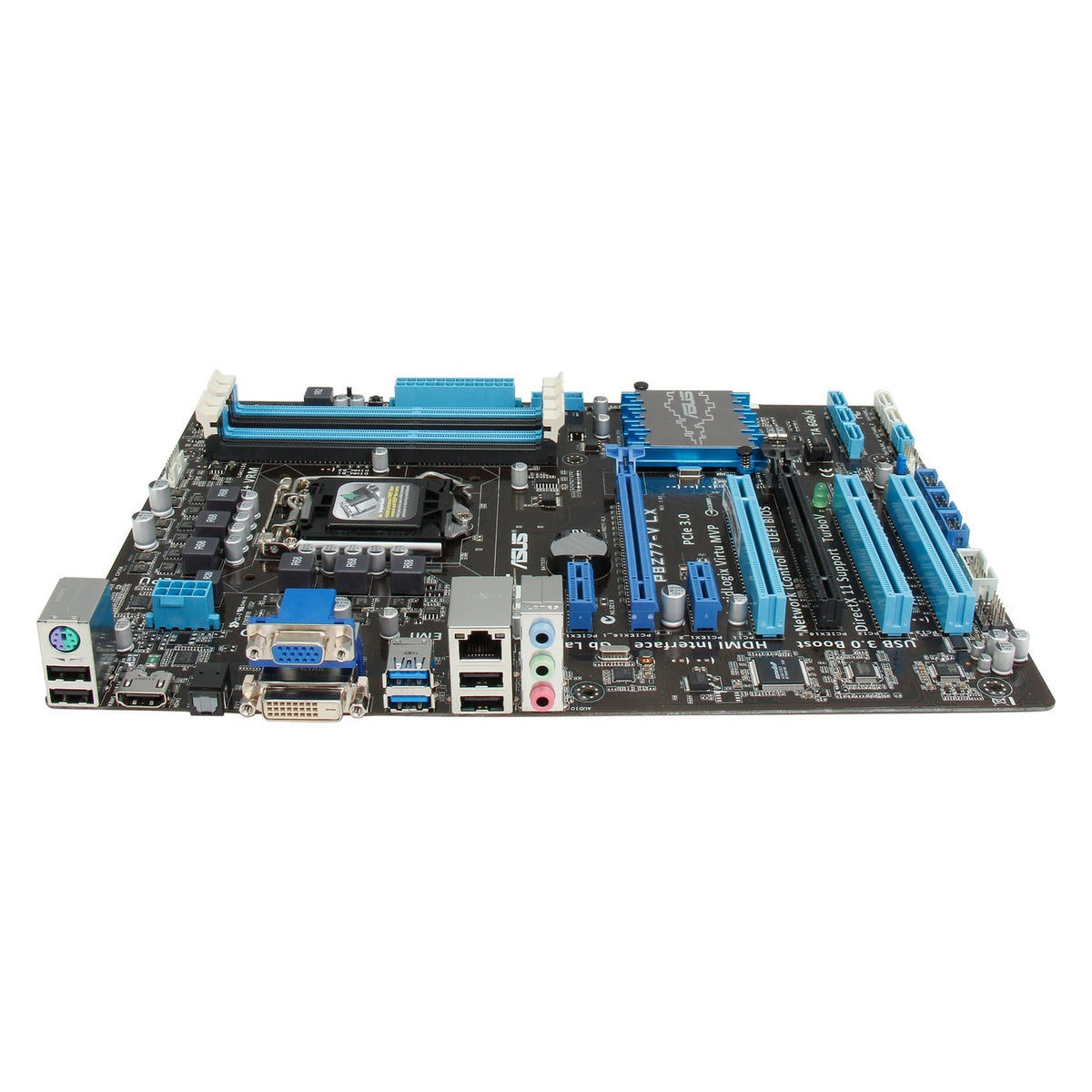

  • Rear USB: 2 × USB 3.0 + 4 × USB 2.0
  • Internal USB: Headers for another 2 × USB 3.0 + 6 × USB 2.0 ports
  • Power connections: 24-pin ATX + 8-pin CPU
  • Fan headers: 1 × 4-pin CPU, 2 × 4-pin chassis and 1 × 3-pin power fan
  • Features: UEFI AMI BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, DIGI+ VRM, MemOK! and USB 3.0 Boost

Item details

  • Condition: Good – Used
  • Included: ASUS P8Z77-V LX motherboard and original I/O shield
  • Warranty: 14 days after delivery
  • Dispatch: 3 business days after payment
  • Packaging: Securely packaged by Unreal Tech

Confirm CPU / BIOS compatibility, DDR3 memory support and case clearance before purchase. Achievable memory speeds depend on the CPU memory controller, motherboard BIOS and settings.

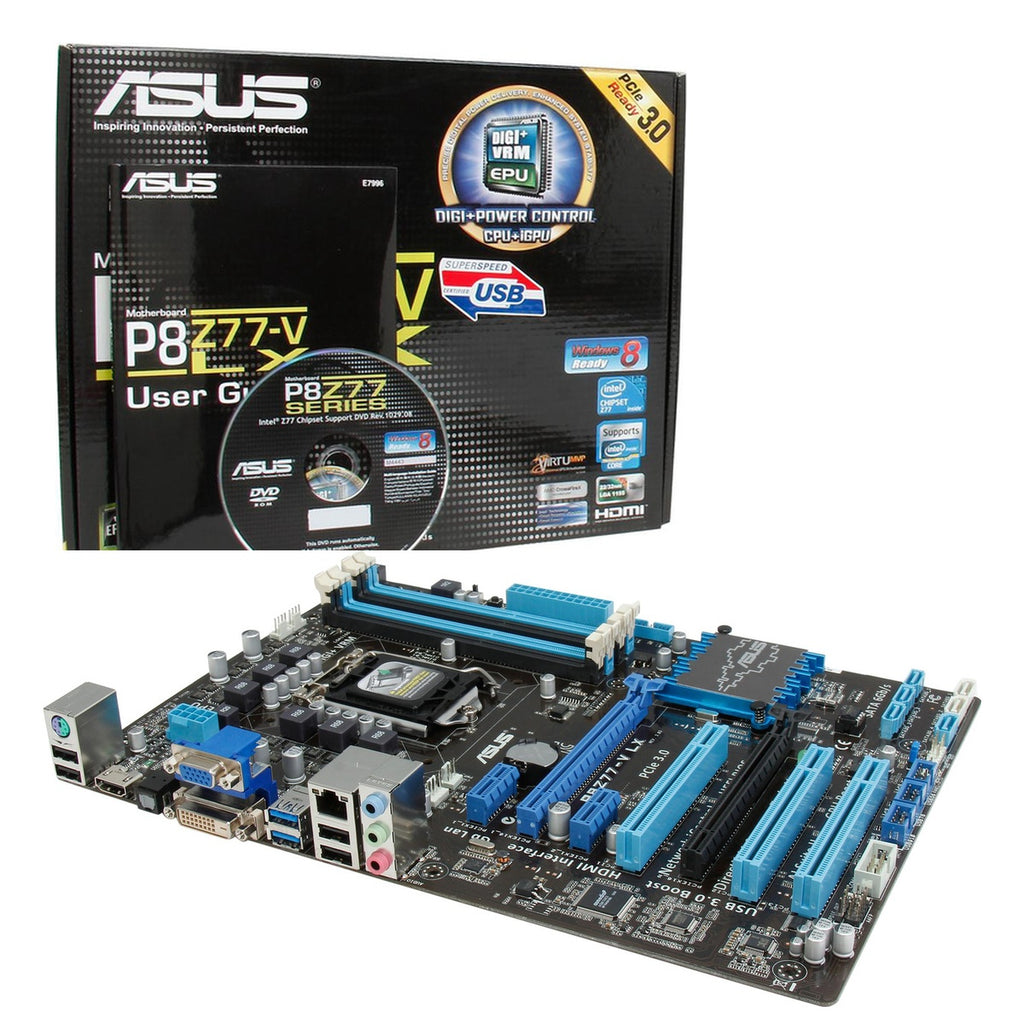

Images: Stock images are for illustration purposes only. Box, manuals and other accessories shown are illustrative; the supplied items are the motherboard and original I/O shield. CPU, cooler and RAM are not included.
